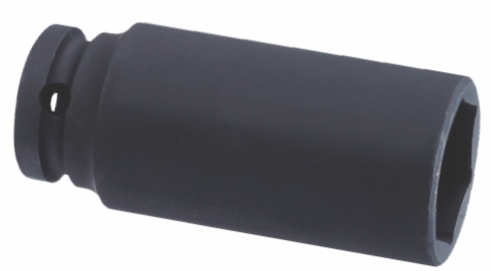

1/2″ DRIVE 6PT DEEP Impact Socket

Category:

METRIC

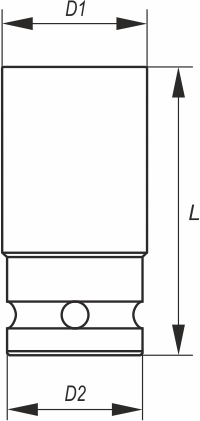

Item No. Size L (mm) D1 (mm) D2 (mm)
ISK-4008D 8mm 78 14,5 25
ISK-4009D 9mm 78 15,6 25
ISK-4010D 10mm 78 16,7 25
ISK-4011D 11mm 78 18 25
ISK-4012D 12mm 78 19 25
ISK-4013D 13mm 78 20,2 25
ISK-4014D 14mm 78 21,5 25
ISK-4015D 15mm 78 23 25
ISK-4016D 16mm 78 24 25
ISK-4017D 17mm 78 26 25
ISK-4018D 18mm 78 27 25
ISK-4019D 19mm 78 28 25
ISK-4020D 20mm 78 29 25
ISK-4021D 21mm 78 30 25
ISK-4022D 22mm 78 32 30
ISK-4023D 23mm 78 33 30
ISK-4024D 24mm 78 34 30
ISK-4025D 25mm 78 36 30
ISK-4026D 26mm 78 36 30
ISK-4027D 27mm 78 38 30
ISK-4028D 28mm 78 40 30
ISK-4029D 29mm 78 41 30
ISK-4030D 30mm 78 42 30
ISK-4031D 31mm 78 43 30
ISK-4032D 32mm 78 44 30
ISK-4033D 33mm 78 46 35
ISK-4034D 34mm 78 48 35
ISK-4035D 35mm 78 49 35
ISK-4036D 36mm 78 50 35
ISK-4038D 38mm 78 52 35
ISK-4041D 41mm 78 56 35

SAE

Item No. Size L (mm) D1 (mm) D2 (mm)
ISK-40S5016D 5/16″ 78 14,3 25
ISK-40S308D 3/8″ 78 16 25
ISK-40S706D 7/16″ 78 18 25
ISK-40S102D 1/2″ 78 20 25
ISK-40S9016D 9/16″ 78 21,8 25
ISK-40S508D 5/8″ 78 24,4 25
ISK-40S11016D 11/16″ 78 26 25
ISK-40S304D 3/4″ 78 28 25
ISK-40S13016D 13/16″ 78 30 25
ISK-40S708D 7/8″ 78 32 30
ISK-40S15016D 15/16″ 78 34 30
ISK-40S1D 1″ 78 36 30
ISK-40S101016D 1-1/16″ 78 38 30
ISK-40S101018D 1-1/8″ 78 40 30
ISK-40S103016D 1-3/16″ 78 42 30
ISK-40S10104D 1-1/4″ 78 44 30
